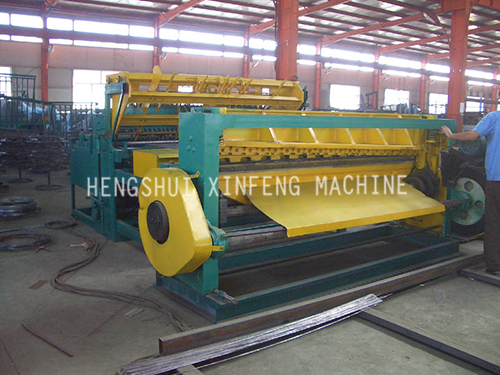

This mesh cutting machine is desinged especially for the welded mesh to cut the mesh to welded mesh panel.
Model | QH11D-3.5×1250/ | QH11D-3.2×2000 | QH11D-2.5×2500 | QH11D-3.2×2500 | |
Mesh thickness | 3.5mm | 3.2mm | 2.5mm | 3.2mm | |
Plate width | 1250/1300mm | 2000mm | 2500mm | 2500mm | |
Shearing angle | 1°30' | 1°30' | 1° | 1°20' | |
Top rest distance times | 47n/min | 47n/min | 47n/min | 47n/min | |
Single travel times | 10n/min | 10n/min | 10n/min | 10n/min | |
Front-gauge distance | 900mm | 900mm | 900mm | 900mm | |
Back-gauge distance | 650mm | 650mm | 650mm | 650mm | |
The distance of the working table above the floor | 800mm | 800mm | 800mm | 800mm | |
Motor | Model | YEJ132S-4 | YEJ132S-4 | YEJ132S-4 | YEJ132S-4 |
| Power | 5.5KW | 7.5KW | 7.5KW | 7.5KW |
| Revolution | 1430r/min | 1430r/min | 1430r/min | 1430r/min |
Machine size | Length | 1860mm | 2624mm | 3124mm | 3124mm |
| Width | 2100mm | 2100mm | 2100mm | 2100mm |
| Height | 1180mm | 1180mm | 1180mm | 1180mm |
Machine weight | 1440Kg | 1800Kg | 2000Kg | 2100Kg | |
