Brick Force Welded Mesh machine.-Brick Force Mesh Welding Machine

Brick Force Welded Mesh machine.

Automatic brick force mesh welding line production line ;Brick Force Mesh Welding Machine; Brick Force Welded Mesh machine.

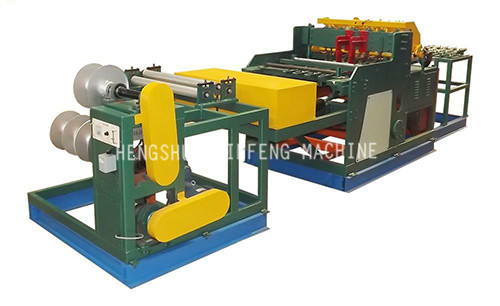

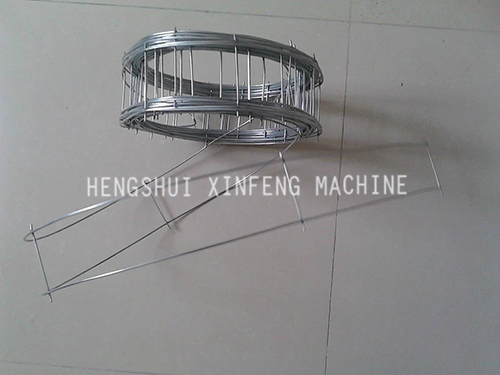

the brick force mesh welding line is used to make brick force mesh for construction, widely used in Africa. Brick Force Mesh Welding Machine, also called Brick Force Wire Making Machine, Automatic Brick Force Welded Mesh machine. Brick Force Wire Making Machine is coiled feeding line wire and four welding spot at the same time. Brick Force Welded Mesh machine is easy to control with button switches and counter.

Machine Advantage

Line wire feed automatically from coil.
Cross wire feed automatically from coil or pre-cut.
It can produce three/four brick force rolls one time.
Easy to operate, need one worker.
Material: black wire, galvanized wire.

technical parameters:

welding wire diameter	2.0-3.0mm
Distance between line wire	65mm115mm 165mm
Transformer	56KVAX2
Overal diamension	6×1.5×1.5m
Rated Voltage	380V
Distance between weft wire	250-300mm
No of welding points	6
welding speed	45times/minute
