Gabion Machine

1：Automatic Gabion Mesh Machine;Gabion machine; hexagonal wire netting machine gabion mesh making machine;; Automatic Gabion Mesh Machine Production Line;

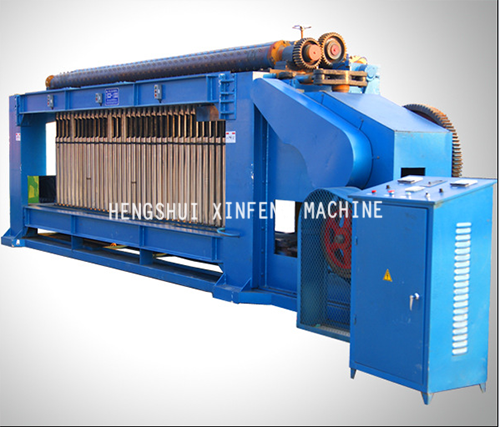

1.the XFH-2 series gabion mesh machines have been designed to make gabion mesh of various widths and mesh sizes
2.The gabion mesh machine, is the professional equipment that produces hexagonal wire netting
descrition:
the XFH-2 series gabion mesh machines have been designed to make gabion mesh of various widths and mesh sizes, we can produce the machine as your size. please note: all machines which showed in globalmarket.we supply advanced machine to oversea clients directly only. if you want to buy advanced machine and want to get best after sales service, please contact me directly.
Applications:
The gabion mesh machine, is the professional equipment that produces hexagonal wire netting, its product extensively usedfor petroleum, building, farming and chemical engineering industry, keep warm piping and other piping,
be also used for rounding column, residence and park greening safeguard etc..

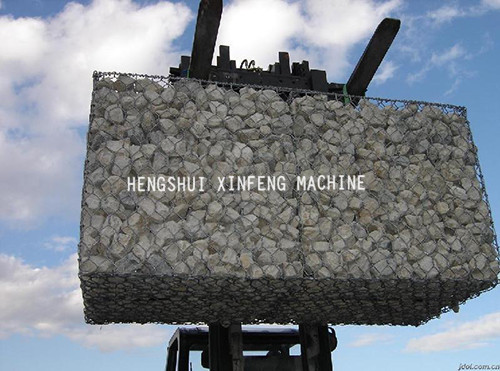

Gabion mesh is still more available to manufacture the gabion mesh box and extensively used for safeguard and backing sea dike, hillside, road , bridge and reservoir and others, it is the best material of the flood control at the same time.
1：Automatic Gabion Mesh Machine;Gabion machine; hexagonal wire netting machine gabion mesh making machine;; Automatic Gabion Mesh Machine Production Line;
1.the XFH-2 series gabion mesh machines have been designed to make gabion mesh of various widths and mesh sizes
2.The gabion mesh machine, is the professional equipment that produces hexagonal wire netting
descrition:
the XFH-2 series gabion mesh machines have been designed to make gabion mesh of various widths and mesh sizes, we can produce the machine as your size. please note: all machines which showed in globalmarket.we supply advanced machine to oversea clients directly only. if you want to buy advanced machine and want to get best after sales service, please contact me directly.
Applications:
The gabion mesh machine, is the professional equipment that produces hexagonal wire netting, its product extensively usedfor petroleum, building, farming and chemical engineering industry, keep warm piping and other piping,
be also used for rounding column, residence and park greening safeguard etc..
Gabion mesh is still more available to manufacture the gabion mesh box and extensively used for safeguard and backing sea dike, hillside, road , bridge and reservoir and others, it is the best material of the flood control at the same time.

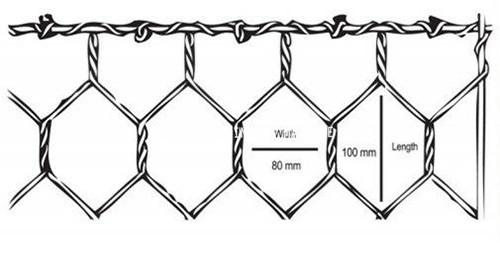

Type	Mesh opening	Max Width	Wire Diameter	Strand	Speed	Power	Theory speed
XFH 23-60-2	60*80 mm	2300 mm	1.6-4 mm	3	25 r/min	11 kw	165 m/h
XFH 23-80-2	80*100 mm	2300 mm	1.6-4 mm	3	25 r/min	11 kw	195 m/h
XFH 23-100-2	100*120 mm	2300 mm	1.6-4 mm	3	25 r/min	11 kw	225 m/h
XFH -23-120-2	120*150 mm	2300 mm	1.6-4mm	3	20 r/min	11 kw	225 m/h
XFH 33-60-2	60*80 mm	3300 mm	1.6-4mm	3	25 r/min	15 kw	165 m/h
XFH 33-80-2	80*100 mm	3300 mm	1.6-4 mm	3	25 r/min	15 kw	195 m/h
XFH 33-100-2	100*120 mm	3300 mm	1.6-4	3	25 r/min	15 kw	225 m/h
XFH 33-120-2	120*150 mm	3300 mm	1.6-4	3	20 r/min	15 kw	225 m/h
XFH 43-60-2	60*80 mm	4300 mm	1.6-4	3	25 r/min	22 kw	165 m/h
XFH 43-80-2	80*100 mm	4300 mm	1.6-4	3	25 r/min	22 kw	195 m/h
XFH 43-100-2	100*120 mm	4300 mm	1.6-4	3	25 r/min	22 kw	225 m/h
XFH 43-120-2	120*150 mm	4300 mm	1.6-4	3	20 r/min	22 kw	225 m/h
