Angle beads machine

Description of angle bead  machine:
Angle bead production line is used to produce the angle bead which is mainly used to protect the angle of the wall.

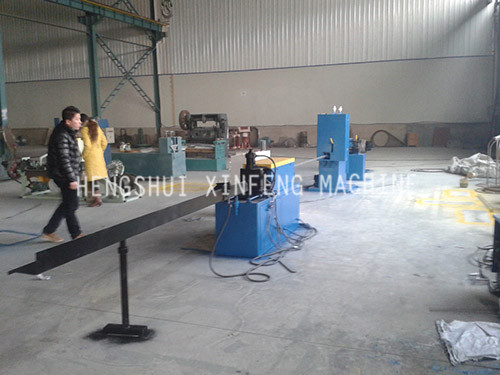

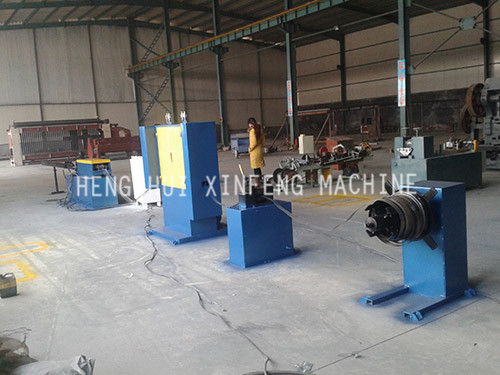

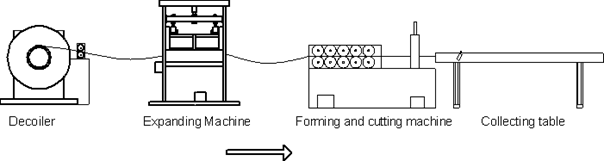

Seen on the picture, the “V” type angle bead production line consists of five parts: uncoiler, angle bead machine, electric control cabinet, roller profiling machine and collecting table



Maximum inner diameter: 480mm, can be adjustable
Loading weight: 1000Kgs
Max. strip width: 150mm
Total motor power: 9.5kw
Punching press: 15Tons
Mesh opening size: 25*10mm, according to the draw
Flange size: 30*30mm, 50*50mm, 70*70mm or according to the draw
Strand width: 1.5mm
Material thickness: 0.3-0.7mm
Production speed: 300 strokes/min
Layout size: 8600*1000*1750mm
Machine weight: 4980kg
Max. Length : 3,000mm

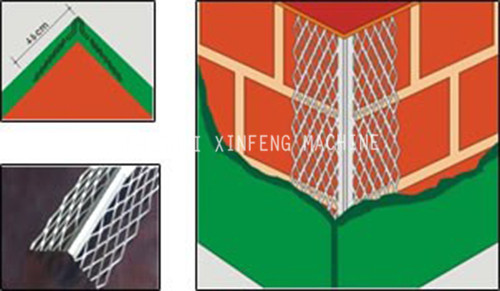

The finished products (angle bead)
