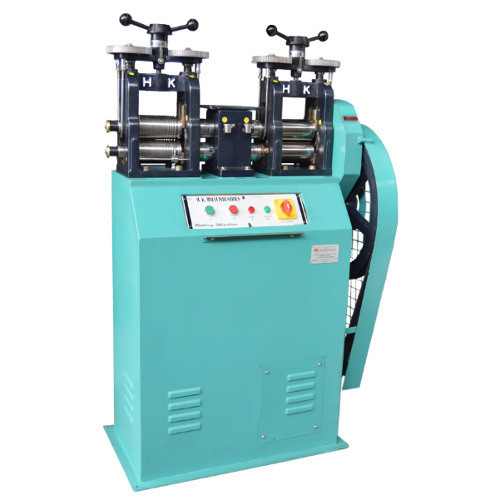

Wire pointing machine

Wire pointing machine is an essential equipment of metal wire drawing industry and widely used in the production of mild steel, high carbon steel, aluminum and copper wires. Point rolls are made of high carbon alloy steel with high surface hardness. the machine, mounted on 4 wheels, make it mobile and convenient to serve several drawing machines.
Operation principle:
End of raw materials should be rolled to a certain diameter which is small enough to go through the hole of the drawing die, and then drawing operation starts. It is applied for drawing copper, aluminum, iron and steel wires.
General features:
1.Compact structure
2.Small footprint
3.Smooth and reliable transmission
4.Convenient and safe to operate.
5.Low noise
6.High production efficiency
drawing-in pointing machine
Drawing-in pointing machine , a vital accessory for straight, wet wire drawing machines, is used for pointing and drawing-in before wire drawing. It is driven by general motor and the rolls made of special material can make sure precision rolling. Plus, we can manufacture a single pointing machine as customer's requirements.

Main technical parameters:



TYPE

A

B

C

pointing diameter (mm)

8.0-2.0

6.5-1.0

3.0-0.8

drum diameter (mm)

400-350

400-350

250-200

pointing length (mm)

100-150

100-150

100-150

roll speed (r/min)

16

16

26

motor power (KW)

3

3

1.5
