No.

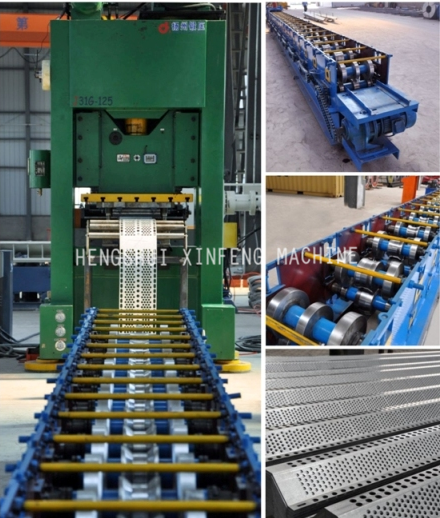

           main parameter of roll forming machine

1

Suitable to process:

Color steel plate

2

Width of the plate:

1000mm

3

Pass:

15passes

4

Frame:

350mm H steel

5

Middle   plate:

16mm

6

Roller material:

45# steel

7

Diameter of the roller:

90mm

8

Chain\Chain wheel:

1.2inch

9

Power:

7.5kw

10

Thickness of the plate:

0.2-0.8mm

11

Productivity:

0-3m/min

12

Dimension:

6*1.3*1.2

13

Total weight:

4T

14

Control system:

PLC control

15

Used

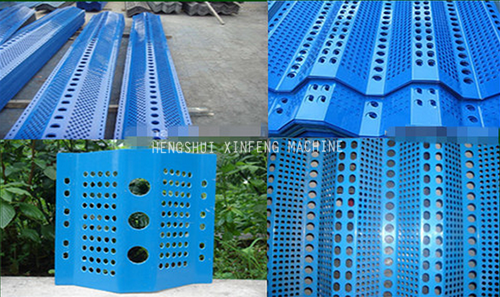

wall panel
