The operator controls the plant through the electronic control stations which are positioned appropriately.
Main parameters:
Power supply | 380 +/-10% [V] , 50 +/-1% [Hz] | |
Electric power of welding unit | 800 KVA | |
Other machine power | 50 KW | |
Source gas | Row amount | 2000 L/min at 6 Bar |
| pressure | 6 Bar |
Cooling water | Row amount | 150 L/min |
| Min. presuure | 3 Bar |
| MAX water temperature | 25 C |
| water inlet | 2 x 1" |
| water exit | 1 x 3" |
Circumstance | temperature | 0 - 40 C |
| altitude | < 1000 m.a.s.l. |

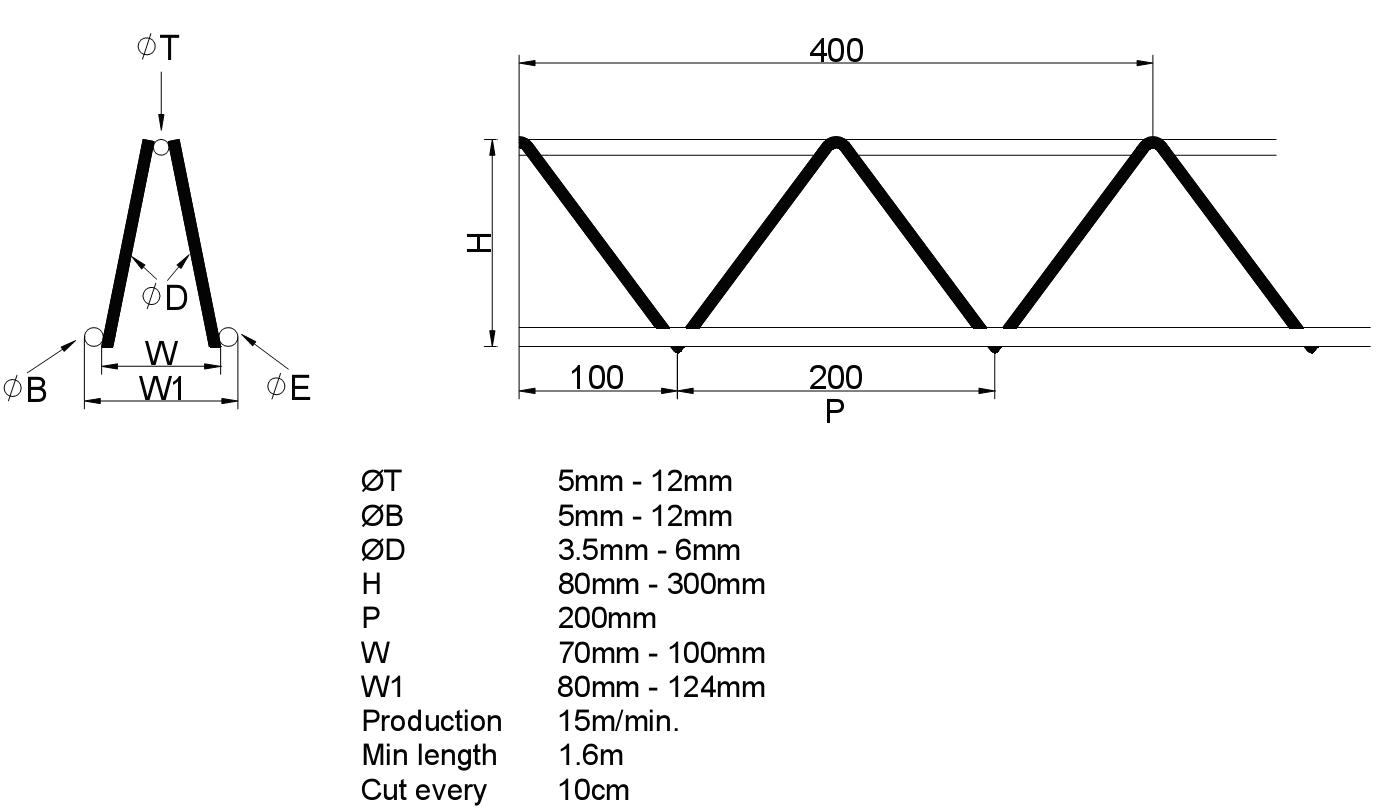

Raw and processed material | ||
Yield strength | MAX 600 N/mm2 | |
Tensile strength | MAX 700 N/mm2 | |
Elongation | > 14 % | |
Top wire diameter | 5 - 12 mm | |
Bottom wire diameter | 5 - 12 mm | |
Bending wire diameter | 3.5 -6 mm | |
Truss girder welding machine | ||
Max welding speed | 12m/mi |

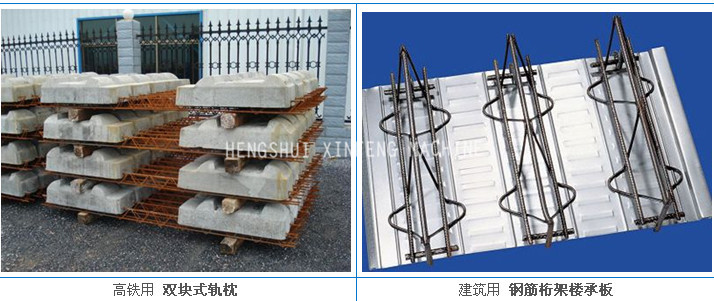

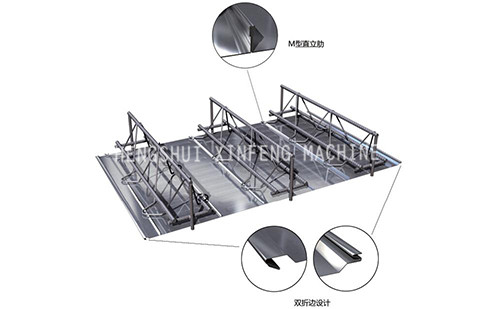

The finished products:
